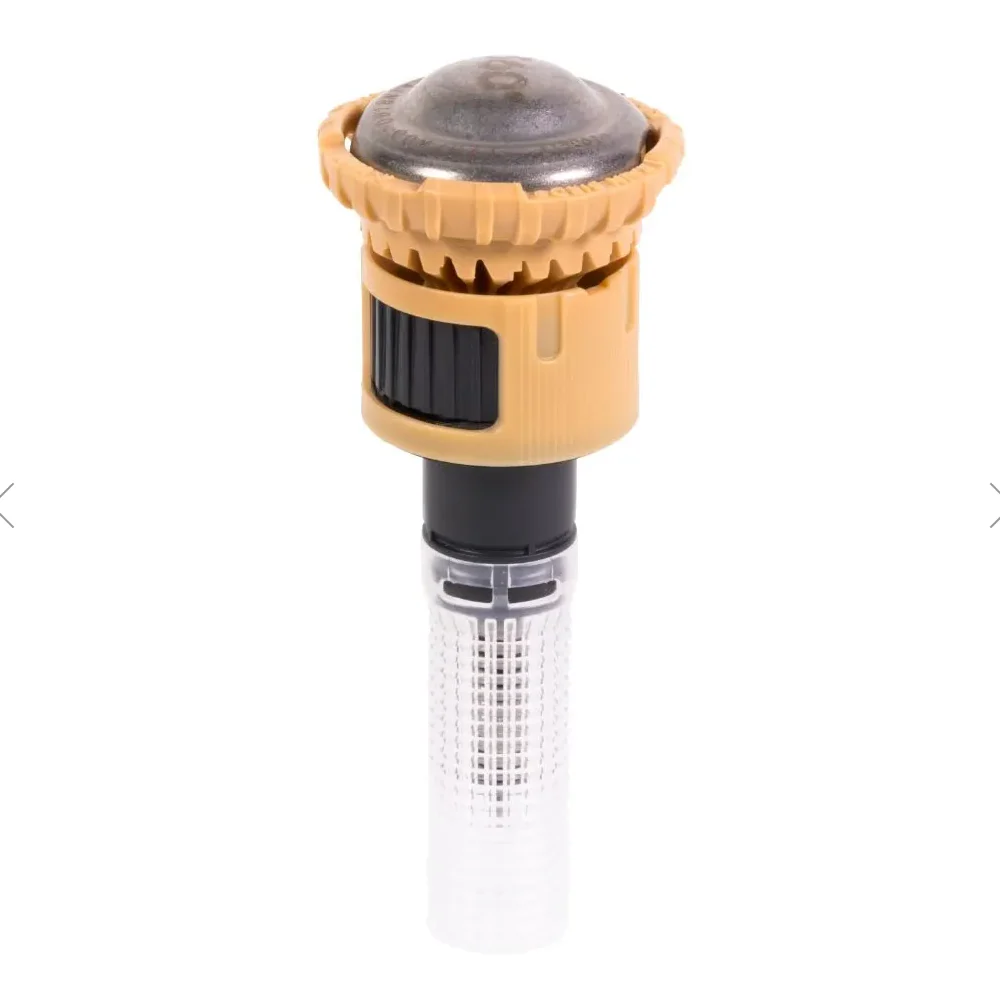

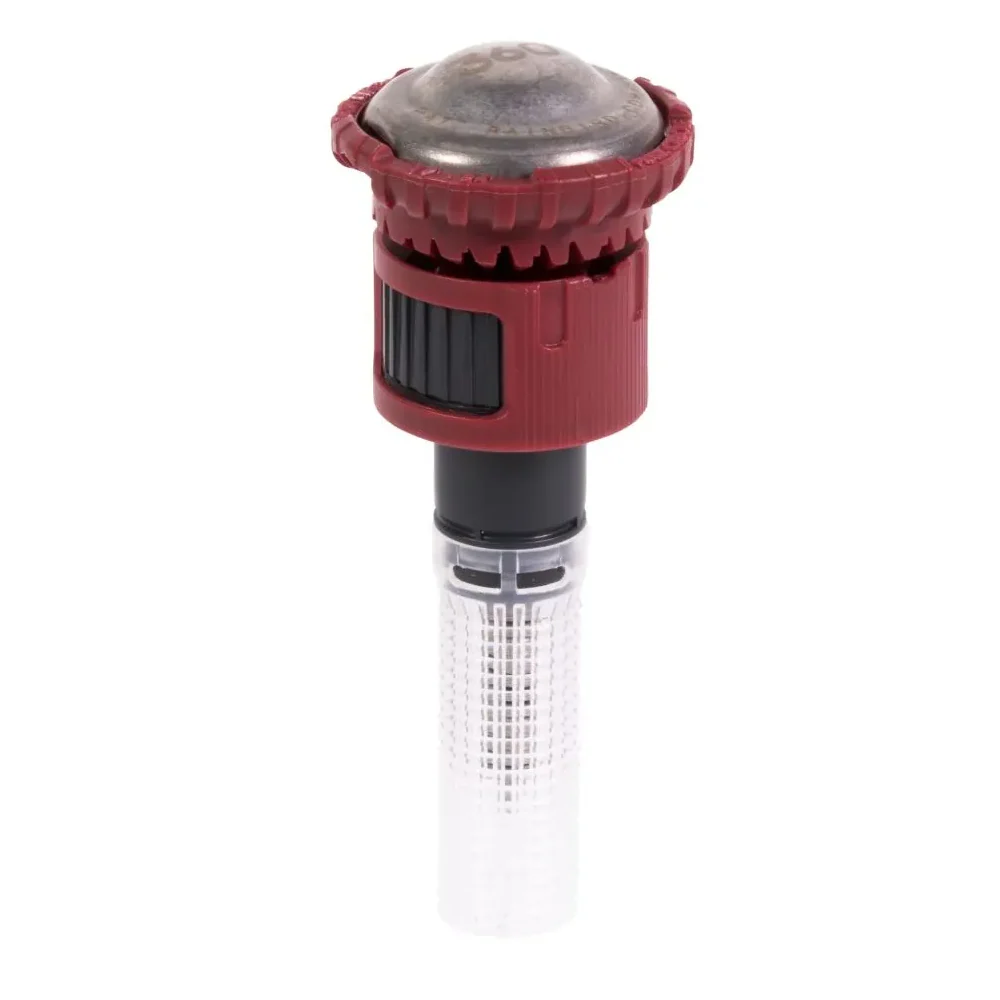

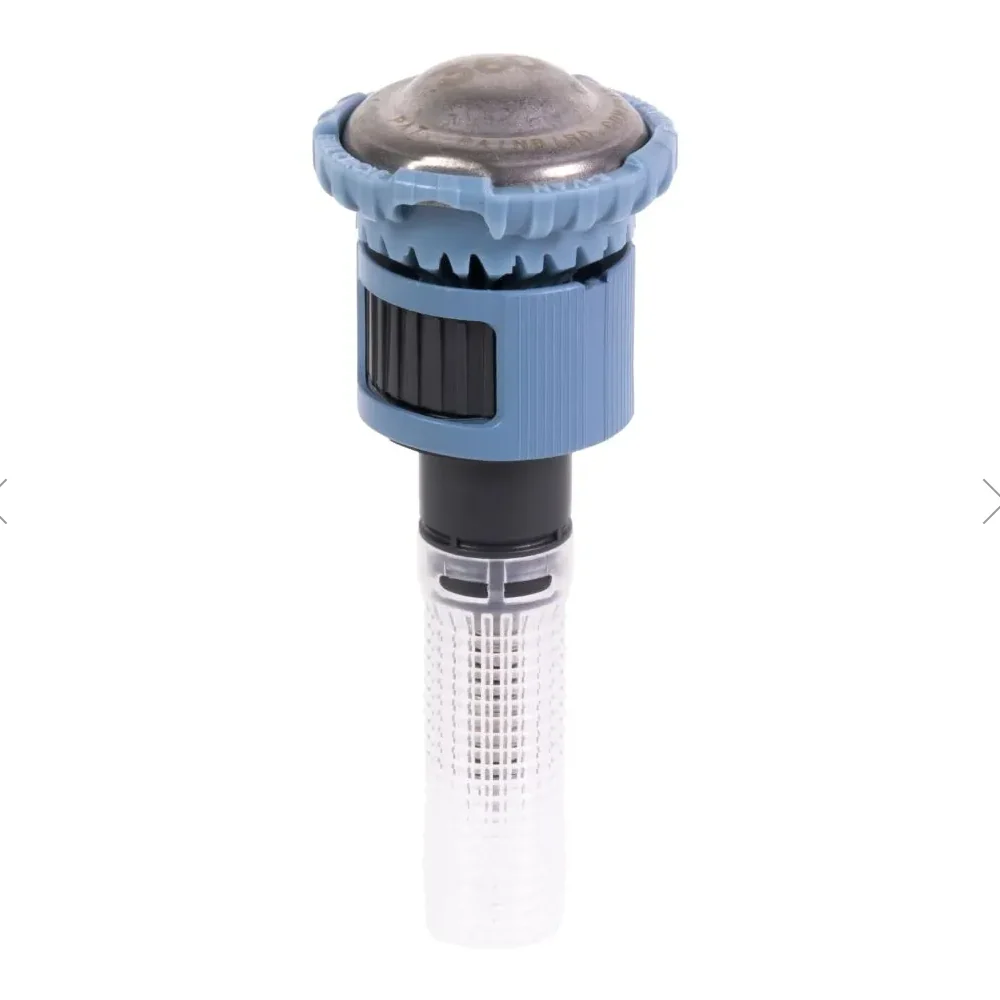

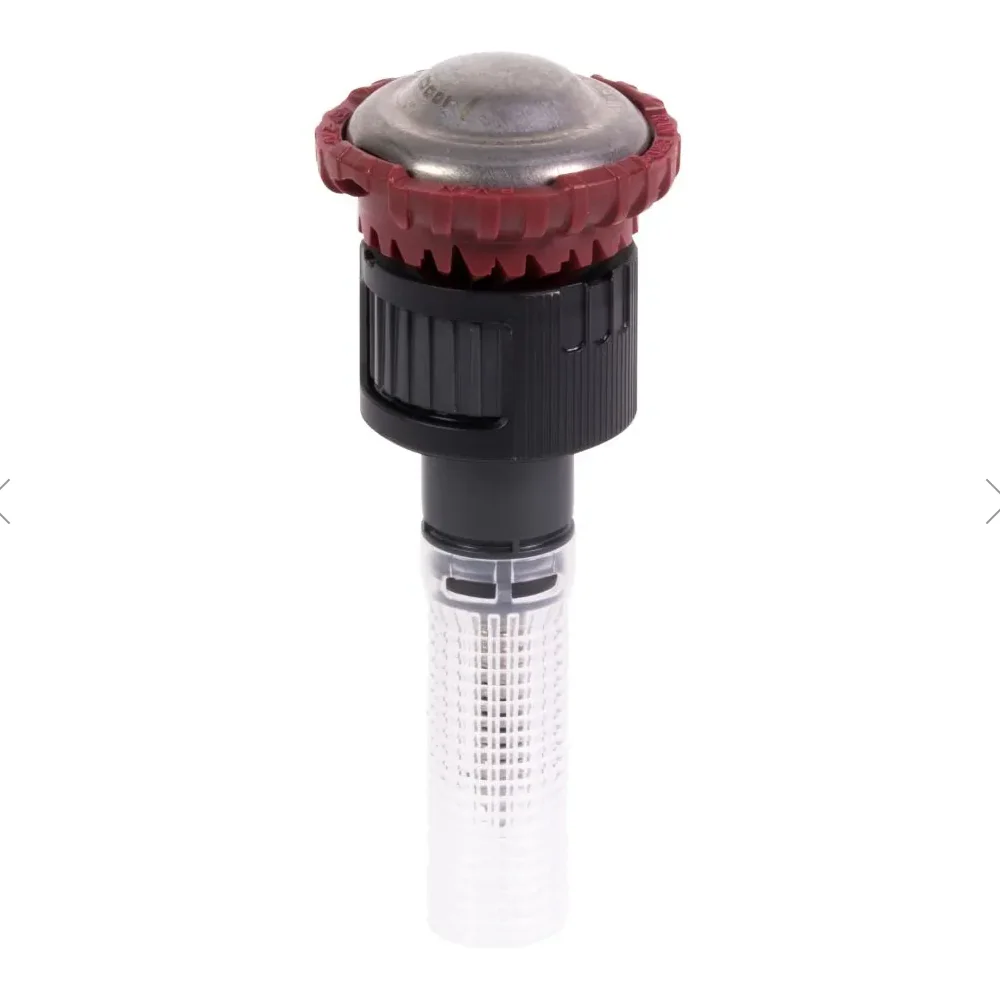

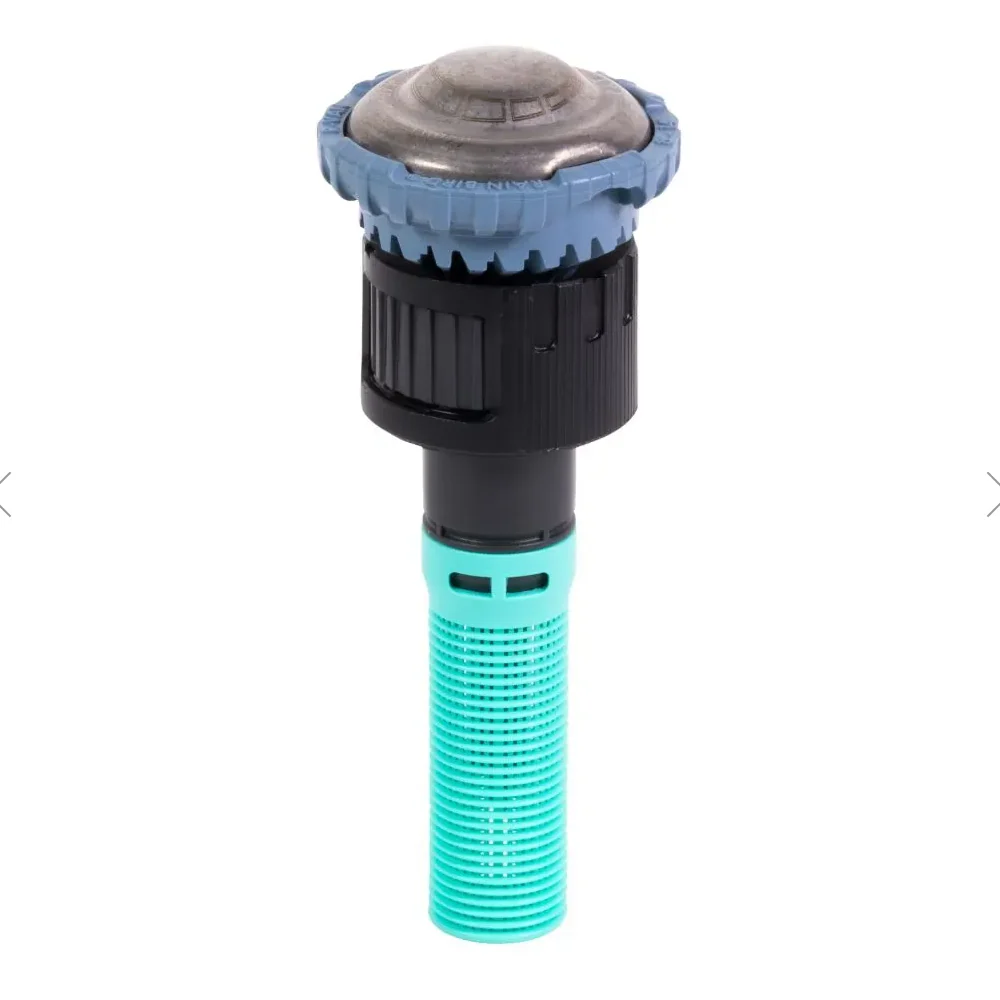

Adjustable Rotary Nozzle - Rain Bird R-VAN | Water-Saving Sprinkler
Save up to 30% more water on your lawn and garden with the Rain Bird R-VAN Adjustable Rotary Nozzle — a high-efficiency rotating stream nozzle designed to replace standard spray heads on any pop-up sprinkler body. The R-VAN delivers water at a low precipitation rate, allowing it to soak into the soil instead of running off, making it one of the most water-efficient sprinkler nozzles available in Australia.
Why Choose Rain Bird R-VAN Rotary Nozzles?
Retrofitting your existing pop-up sprinklers with R-VAN rotary nozzles can reduce water flow by up to 60% and improve irrigation efficiency by up to 30%. The rotating stream technology delivers water uniformly across the entire spray pattern, significantly reducing runoff and erosion — especially on slopes and clay soils.
Features & Benefits
- Tool-free adjustment — set arc (45° to 270° or full 360°) and radius by hand, no special tools required
- Colour-coded models — easy identification of R-VAN14, R-VAN18 and R-VAN24 nozzles
- Low precipitation rate — reduces run-off, erosion and water waste
- No misting or fogging — maintains efficient performance even at higher operating pressures
- Universal compatibility — fits all Rain Bird spray bodies plus a wide range of pop-up risers and shrub adapters
- Matched precipitation rates — consistent water application across all radius settings and arc patterns for simplified irrigation design
- MPR compatible — pair with Rain Bird 5000 Series Rotor MPR nozzles for matched precipitation designs from 4.0 m to 10.7 m
- 3-year manufacturer warranty
Available Models
| Model | Radius | Arc Pattern |
|---|---|---|
| R-VAN14 | 2.4 – 4.3 m (8–14 ft) | Adjustable 45°–270° |
| R-VAN18 | 4.0 – 5.5 m (13–18 ft) | Adjustable 45°–270° |
| R-VAN24 | 5.2 – 7.3 m (17–24 ft) | Adjustable 45°–270° |
| R-VAN14-360 | 2.4 – 4.3 m (8–14 ft) | Full circle 360° |
| R-VAN18-360 | 4.0 – 5.5 m (13–18 ft) | Full circle 360° |
| R-VAN24-360 | 5.2 – 7.3 m (17–24 ft) | Full circle 360° |
Frequently Asked Questions
Will the R-VAN fit my existing sprinkler system?
Yes. R-VAN rotary nozzles are a direct retrofit for standard spray nozzles. They screw into all Rain Bird spray bodies and are compatible with most other pop-up sprinkler bodies, risers and shrub adapters.
How much water will I save?
Replacing standard spray nozzles with R-VAN rotary nozzles can reduce water flow by up to 60% and improve overall irrigation efficiency by up to 30%, thanks to the low precipitation rate and uniform water distribution.
Do I need tools to adjust the spray pattern?
No. Both the arc and radius of the R-VAN are adjusted entirely by hand — no tools required.
